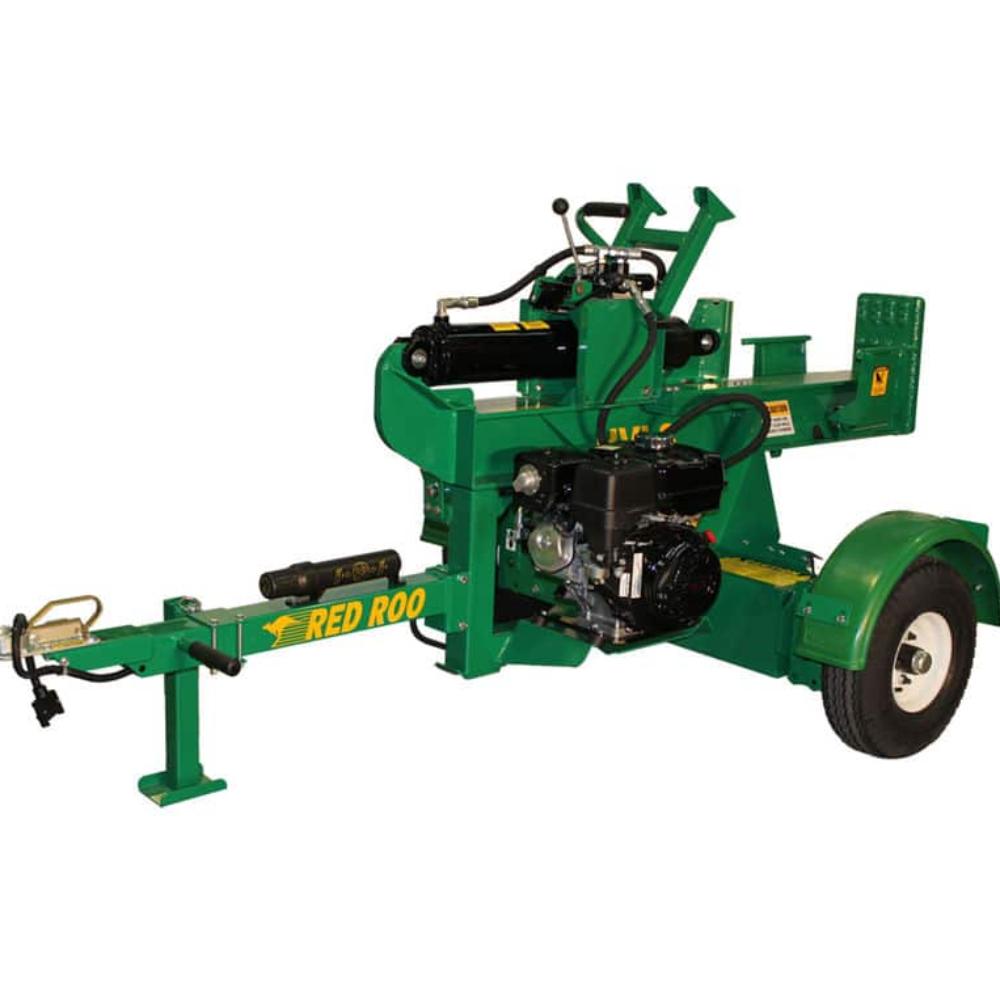

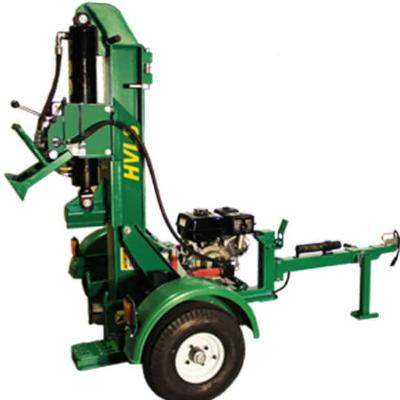

The HVLS Series 2 Log Splitter is an economic alternative that operates in both the horizontal and vertical positions. The Red Roo HVLS makes light work of hardwood and is powered by a genuine 9hp (6.75Kw) OHC Robin Subaru engine the HVLS assists in providing a low cost energy alternative. Ideal for large acreage owners and those with a rural lifestyle the HVLS comes assembled with mudguards, jockey wheel and 50mm (2″) tow coupling, this unit is towable on Australian roads.

ENGINE

ENGINE TYPE

9HP (6.7KW) ROBIN SUBARU EX27 OHC

GENERAL

LENGTH

2440MM (96″)

WIDTH

1280MM (50″)

HEIGHT

1050MM (41″)

WEIGHT

455KGS (1000LBS)

27T CAPACITY

600MM (24″) WORKING AREA

LOG CRADLE RUBBER MOUNTED SPRING LOADED

VERTICAL & HORIZONTAL OPERATION

13 SECOND CYCLE TIME WITH 3 POSITION AUTO RETURN VALVE

WEIGHT: 455KGS (1000LBS)
